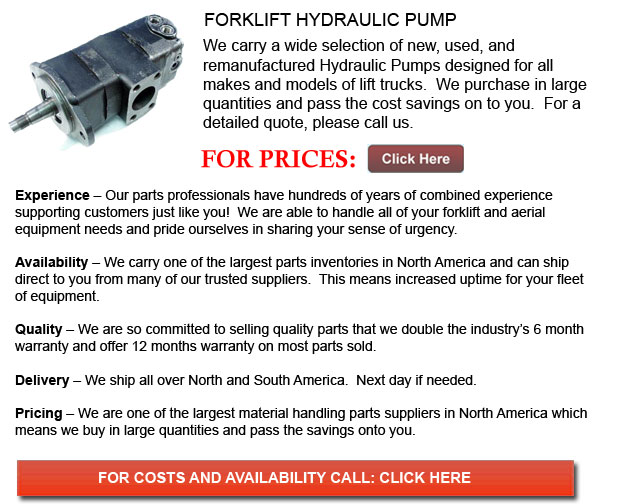

Forklift Hydraulic Pump

Forklift Hydraulic Pump - Hydraulic pumps could be either hydrodynamic or hydrostatic. They are usually utilized within hydraulic drive systems.

Hydrodynamic pumps could be regarded as fixed displacement pumps. This means the flow through the pump for each pump rotation could not be changed. Hydrodynamic pumps could even be variable displacement pumps. These kinds have a more complicated composition that means the displacement could be altered. On the other hand, hydrostatic pumps are positive displacement pumps.

The majority of pumps are functioning within open systems. Typically, the pump draws oil at atmospheric pressure from a reservoir. In order for this process to run smoothly, it is imperative that there are no cavitations taking place at the suction side of the pump. In order to enable this to function correctly, the connection of the suction side of the pump is larger in diameter than the connection of the pressure side. With regards to multi pump assemblies, the suction connection of the pump is usually combined. A general alternative is to have free flow to the pump, meaning the pressure at the pump inlet is a minimum of 0.8 bars and the body of the pump is frequently within open connection with the suction portion of the pump.

In a closed system, it is acceptable for there to be high pressure on both sides of the pump. Usually, in closed systems, the reservoir is pressurized with 6-20 bars of boost pressure. In the instance of closed loop systems, normally axial piston pumps are used. Since both sides are pressurized, the pump body requires a separate leakage connection.
